The figures below are examples to demonstrate the various
drive and baseplate versions. seepex pumps can be delivered
with geared motors, variable speed drives and frequency-controlled
drives of all well-known manufacturers. The drive types can
be used for all ranges.

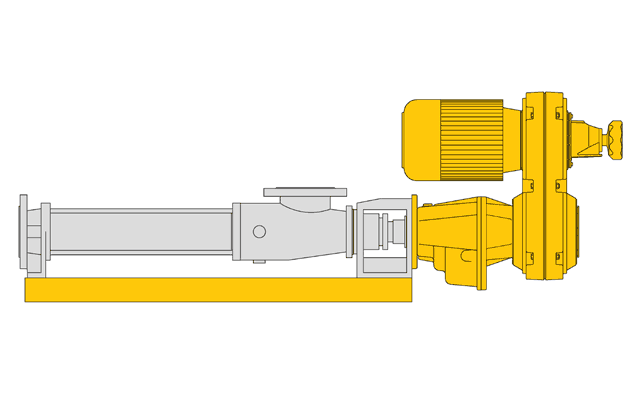

Baseplate B
with variable geared motor (adjusting pulley)

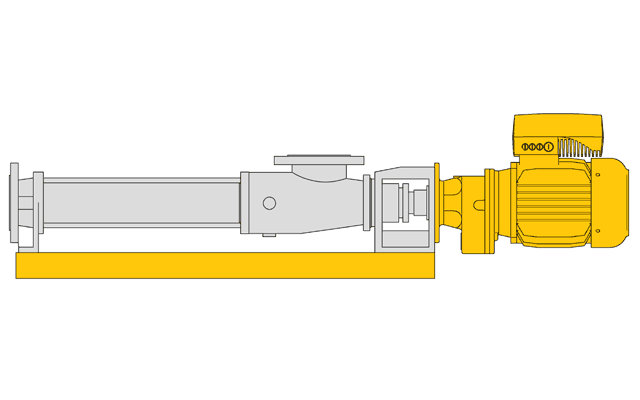

Baseplate B
with frequency-controlled geared motor

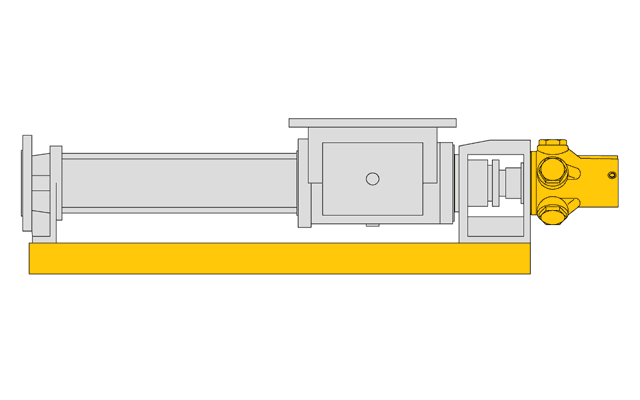

Baseplate B
with hydraulic motor

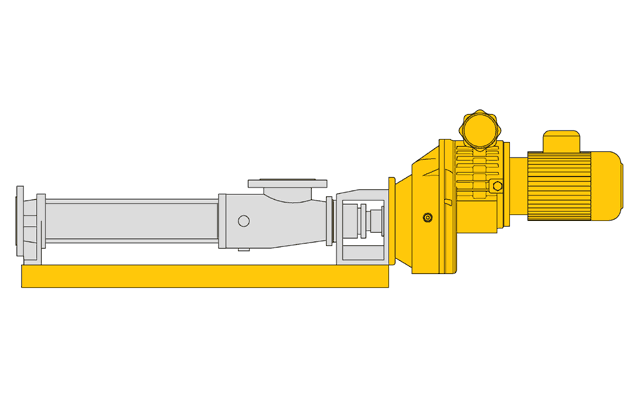

Baseplate B
with variable geared motor (friction wheel)

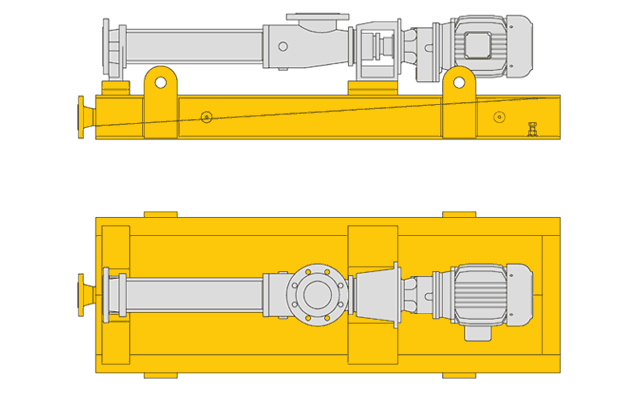

Baseplate API676 (BN)
With geared motor

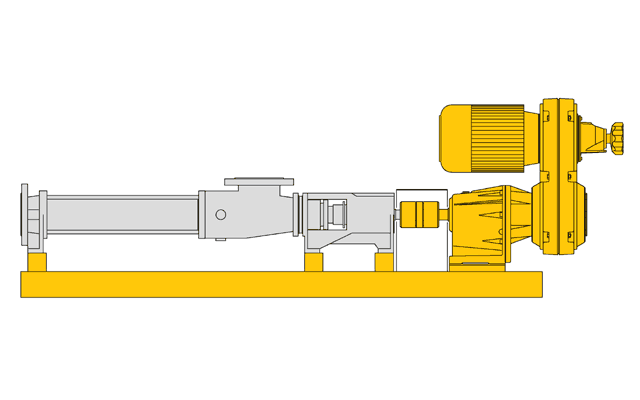

Baseplate N
With variable geared motor and elastic coupling

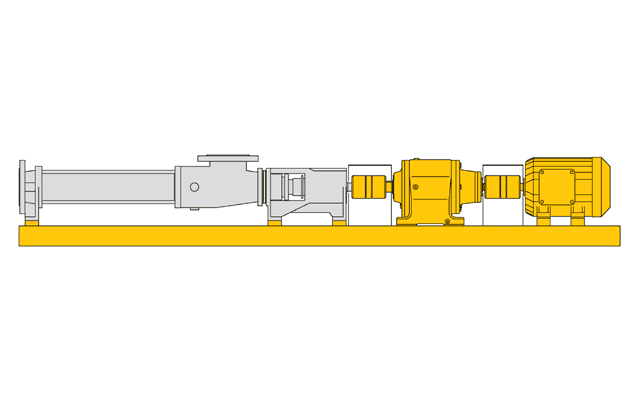

Baseplate N2K
With gear box, electric motor and 2 elastic couplings

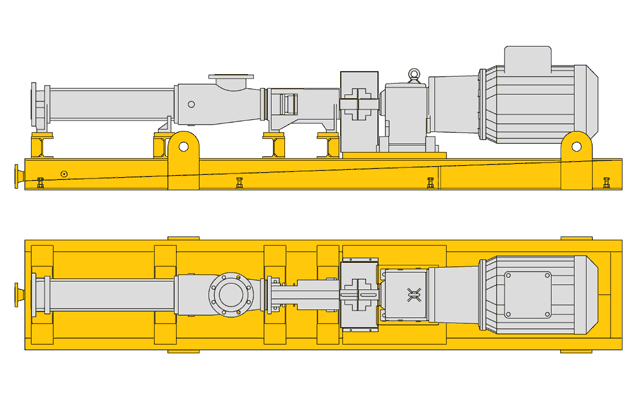

Baseplate API676 (NS)
With geared motor

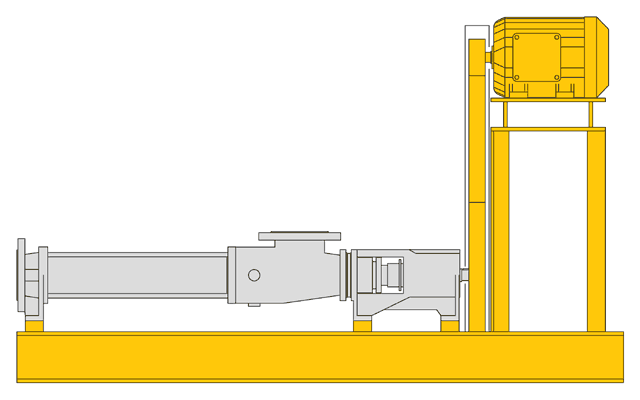

Baseplate NKV
With electric motor and V-belt drive

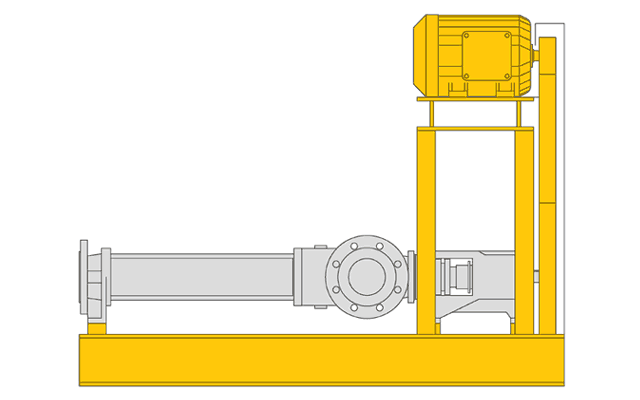

Baseplate NKZ
With electric motor and V-belt drive, flange connection possible
on the side only

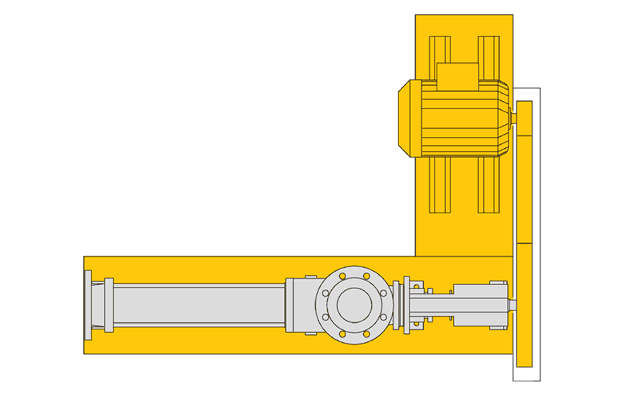

Baseplate NK2
With electric motor and V-belt drive, position 2

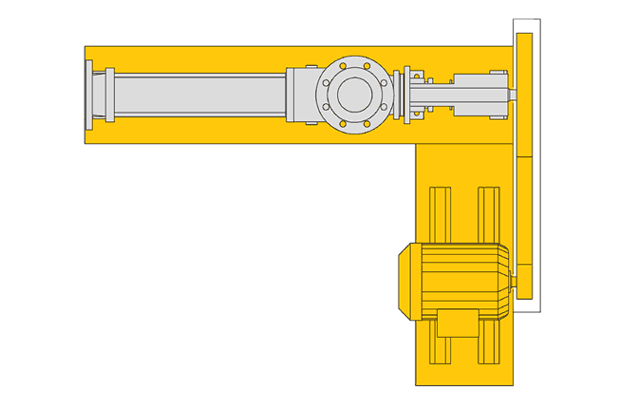

Baseplate NK3
With electric motor and V-belt drive, position 3

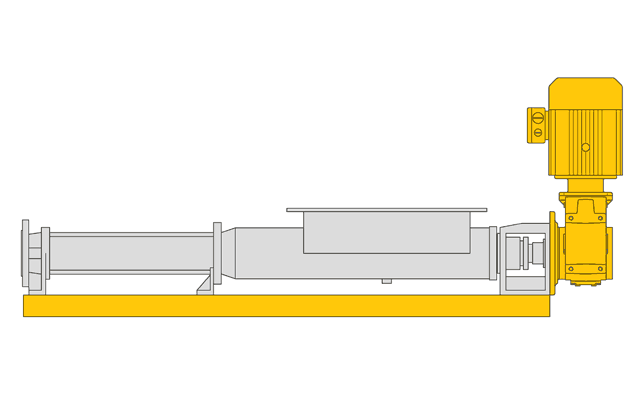

Baseplate BV
With helical bevel gear motor

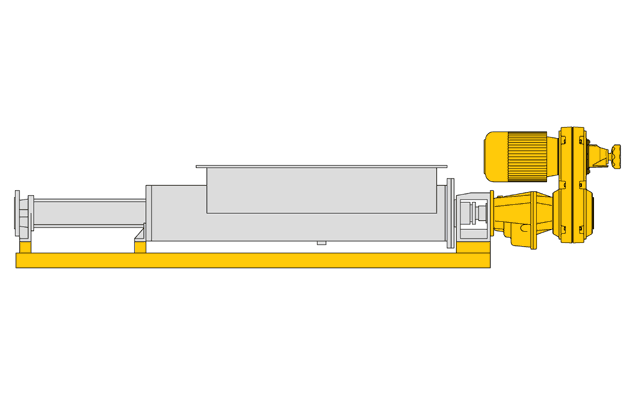

Baseplate BV
With variable geared motor

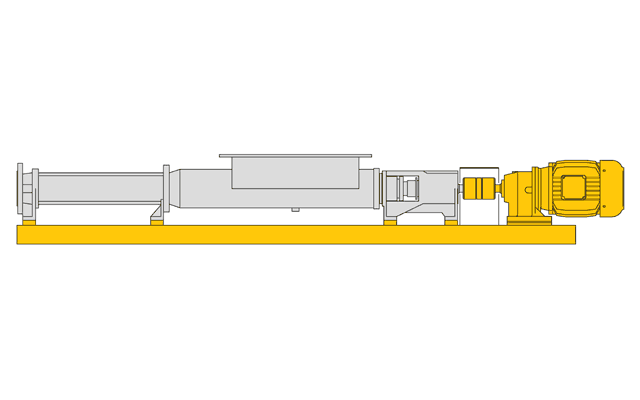

Baseplate T
With geared motor and elastic coupling

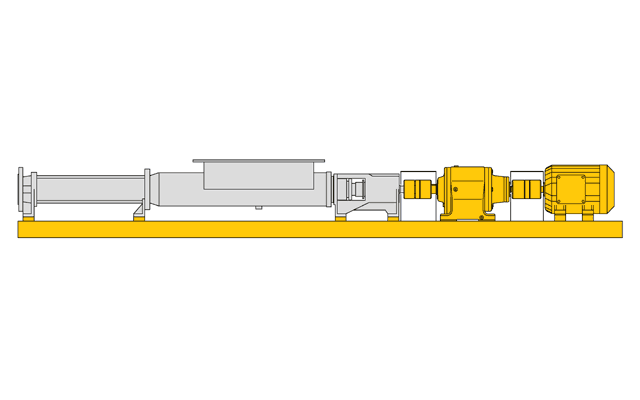

Baseplate T2K
With gear box, electric motor and 2 elastic couplings

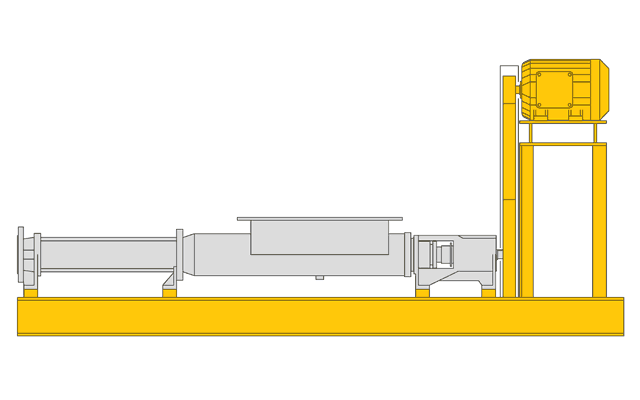

Baseplate TKV
With electric motor and V-belt drive

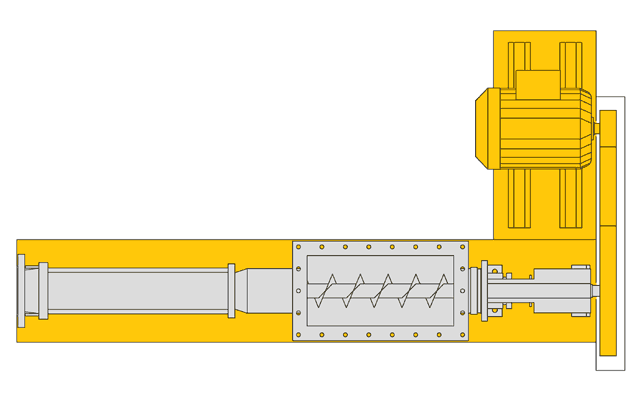

Baseplate TK2
With electric motor and V-belt drive, position 2

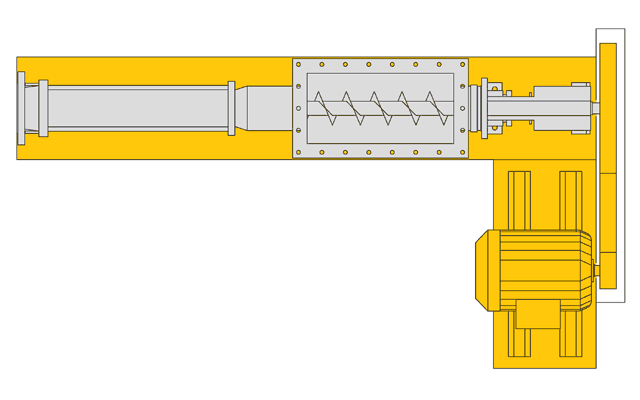

Baseplate TK3
With electric motor and V-belt drive, position 3

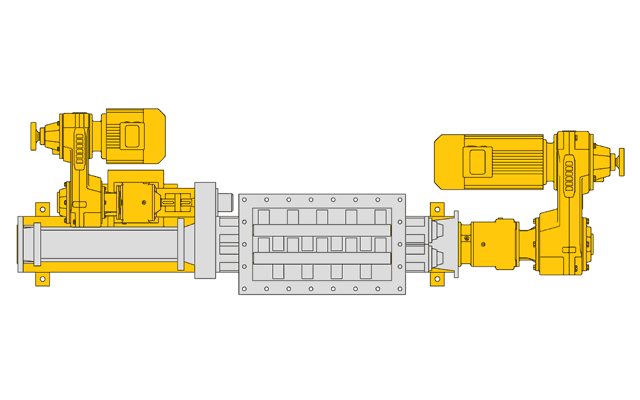

Baseplate BTI2
With variable geared motor, drives in position 2

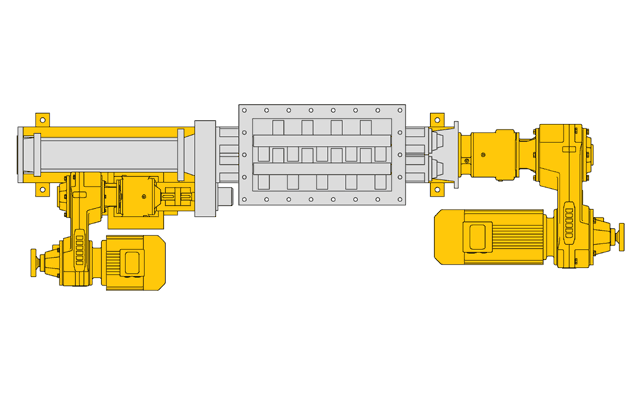

Baseplate BTI3
With variable geared motor, drives in position 3

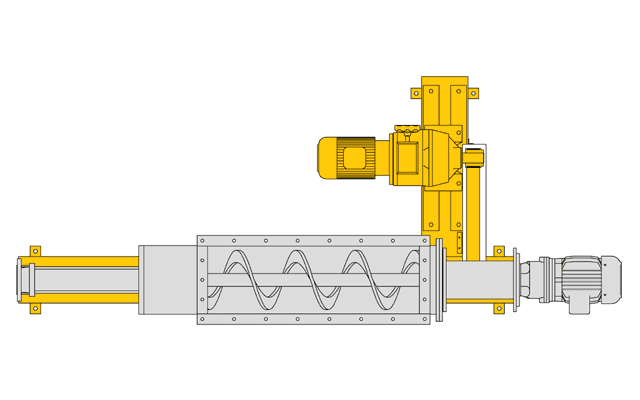

Baseplate BTH2
With geared motor, ribbon screw drive in position 2

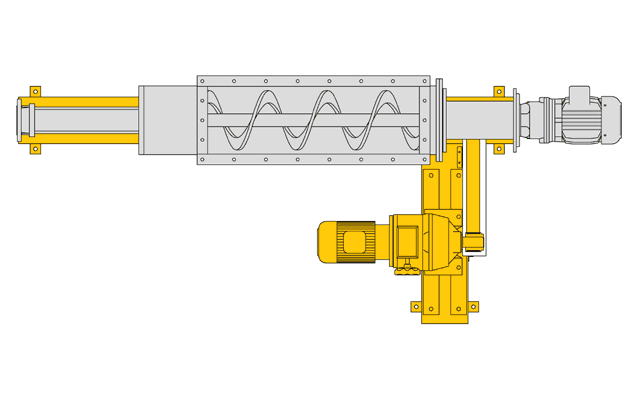

Baseplate BTH3
With geared motor, ribbon screw drive in position 3

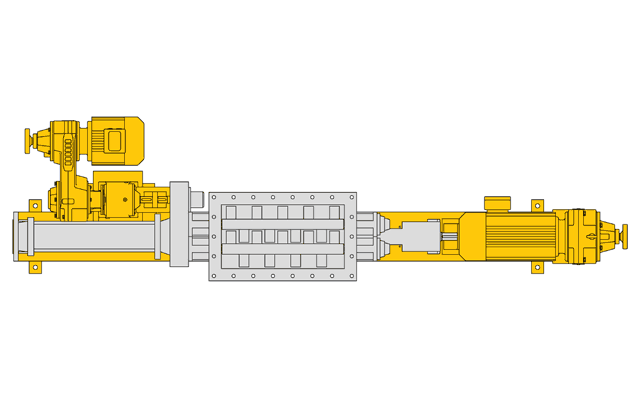

Baseplate TI2
With variable geared motor, bridge breaker drive in position
2

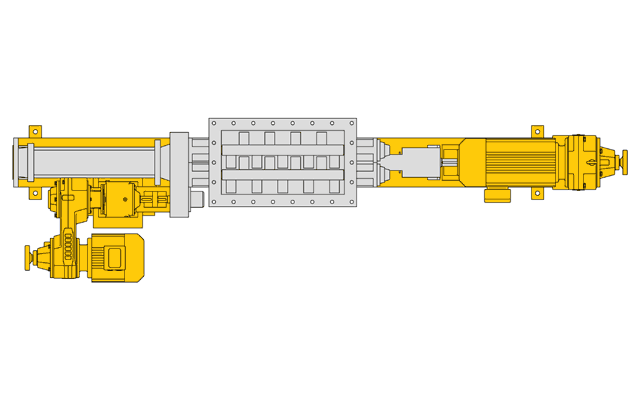

Baseplate TI3
With variable geared motor, bridge breaker drive in position
3

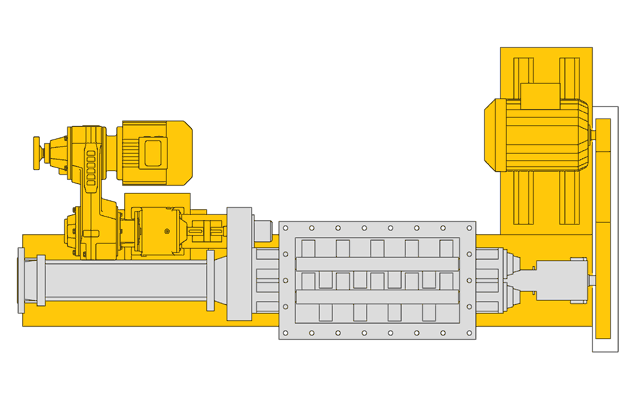

Baseplate TIK2
With variable geared motor and V-belt drive, drives in position
2

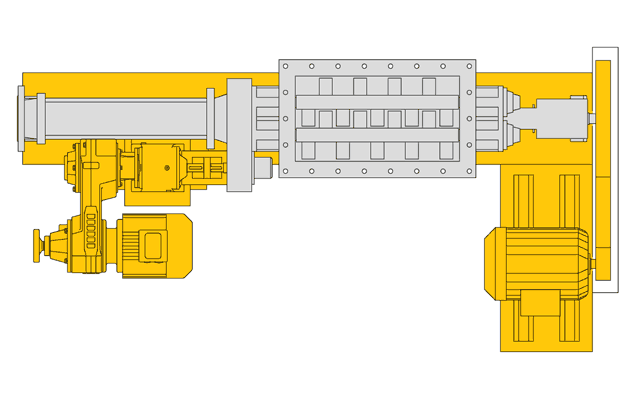

Baseplate TIK3
With variable geared motor and V-belt drive, drives in position
3

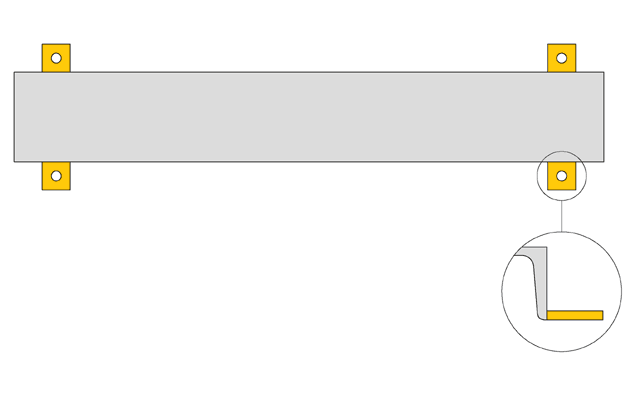

Option LS
Fixing loops

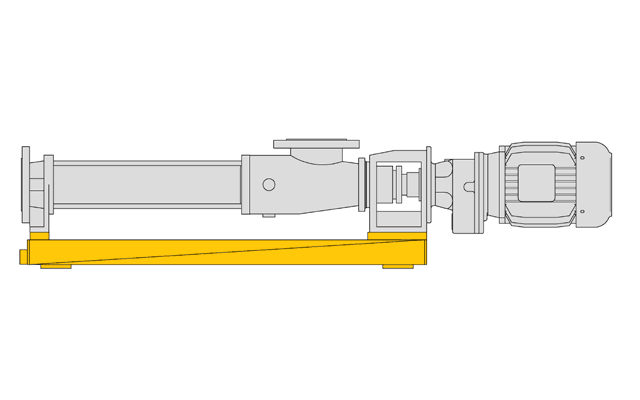

Option LA
Leakage drip rim with connection to the leakage drain

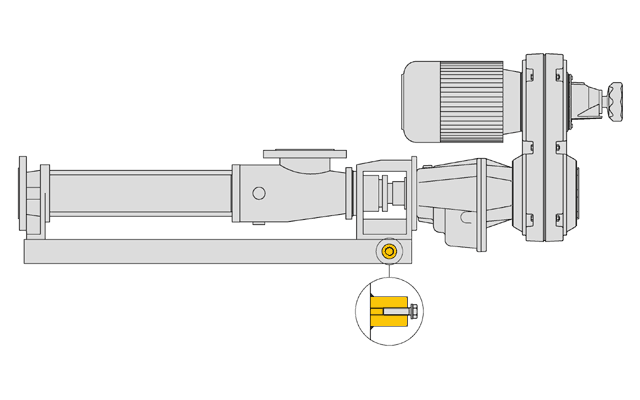

Option EA
Earth Connection

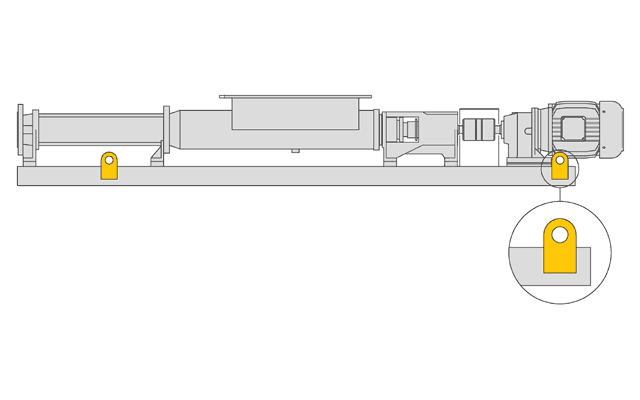

Option TR
4 lifting lugs

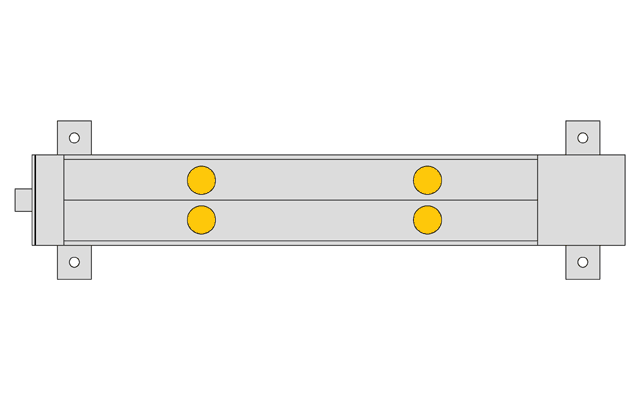

Option GH
Grout holes for filling with concrete

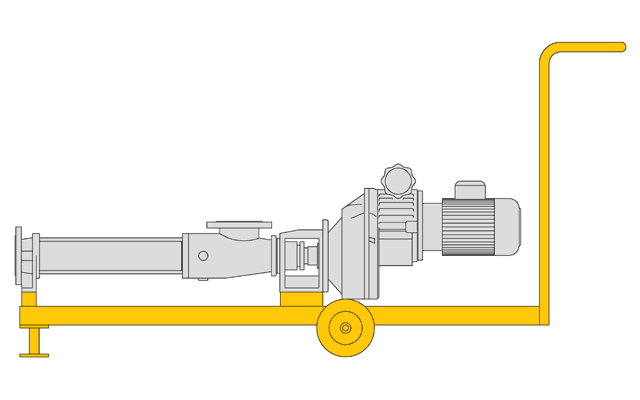

Option F2
Two-Wheel Trolley

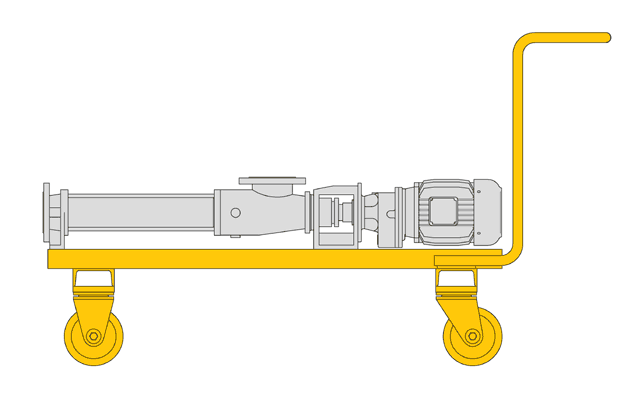

Option F4
Four-Wheel Trolley

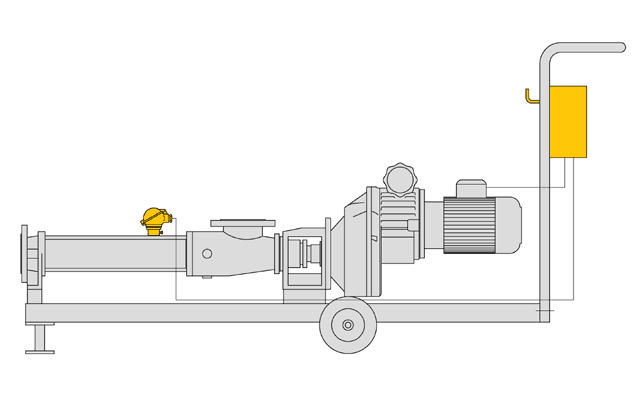

Option M
Motor control with dry running protection device TSE
