seepex pumps are generally designed for the respective application.
For this purpose, a large selection of ranges and materials
as well as a comprehensive accessories program are available.
This ensures operating safety, increases the service life
or optimises product feed or exact dosing of products.

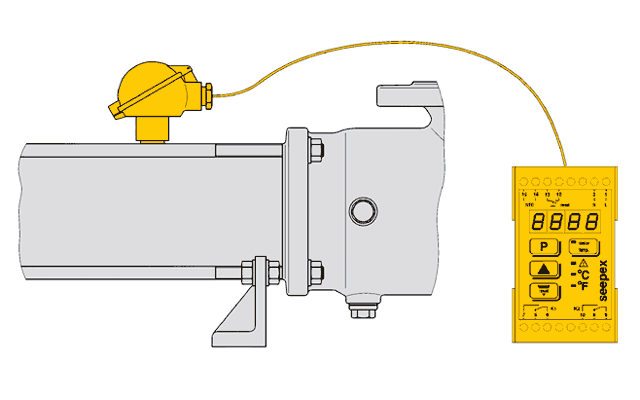

Dry Running Protection
Device TSE
The temperature between the rotor and the stator is permanently
sensed thermoelectrically via a temperature sensor integrated
in the stator and compared with the limit value set at the
TSE control unit.
When the pump runs dry, the temperature will rise due to the
increased friction between the rotor and the stator. When
the set limit value has been reached, the TSE control unit
switches off the pump drive and triggers a fault message.

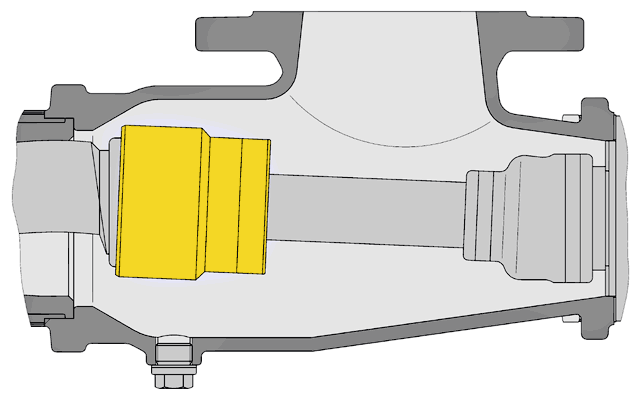

Universal Joint Protection
Made of stainless steel for protecting the universal joint
sleeve against mechanical destruction due to ultralarge solids
such as plastic, wood, glass and metal parts. When using this
type of universal joint protection, seepex grants a warranty
of 10,000 operating hours on the joints.

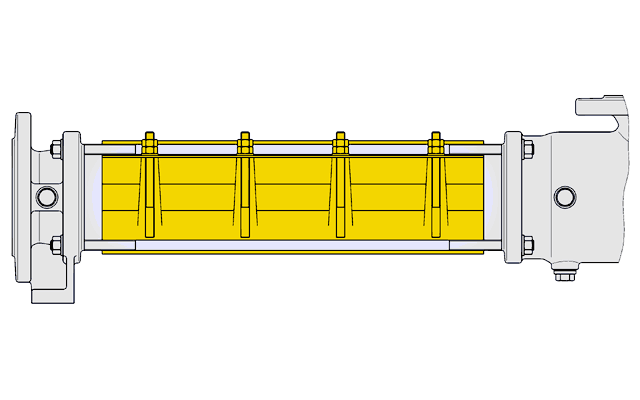

Adjustable Stator Retensioning
Device
This device can be used to evenly retighten a worn stator
until the original compression fit of the rotor and stator
and thus the original pump capacity has been reached again.

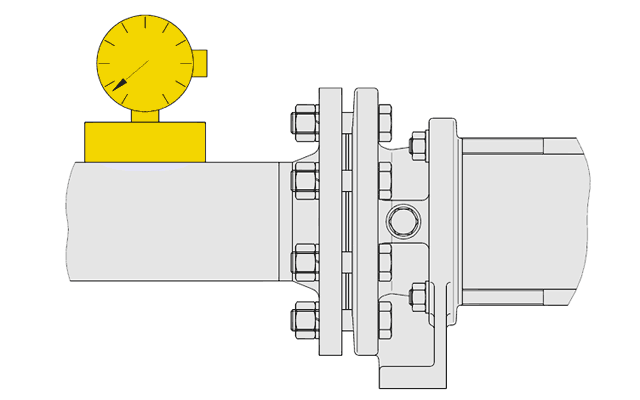

Overpressure/Low Pressure
Protection Device
Diaphragm contact pressure gauge with open measuring flange
switches a floating contact when the adjustable permissible
pump pressure has been exceeded.

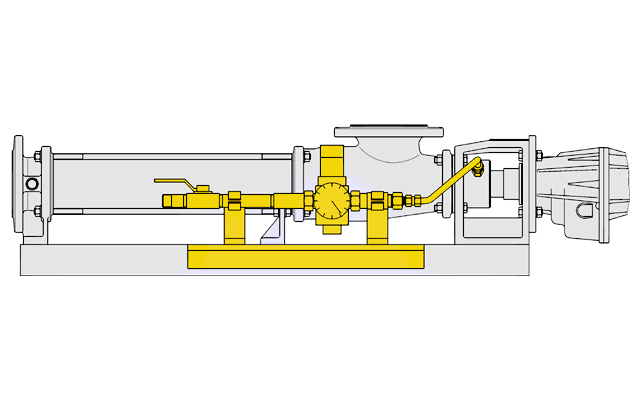

Lantern Ring Supply
Unit
The lantern ring supply unit is used for supplying the shaft
sealing with sealing liquid. It can be equipped with a flow
meter, if desired. With labyrinth seals, the flow rate can
be adjusted and checked.
