Mechanical Seals

If very high demands are placed on the shaft seal, mechanical seals of various manufacturers and designs can be provided. Due to their design and special application conditions, pumps of product groups D, E and CS are generally equipped with single-acting or double-acting mechanical seals.

Practically free of leaks
Maintenance-free
Low-wear
Highly resistant to pressure and vacuum
Safe, ecologically sound sealing when hazardous material is involved.

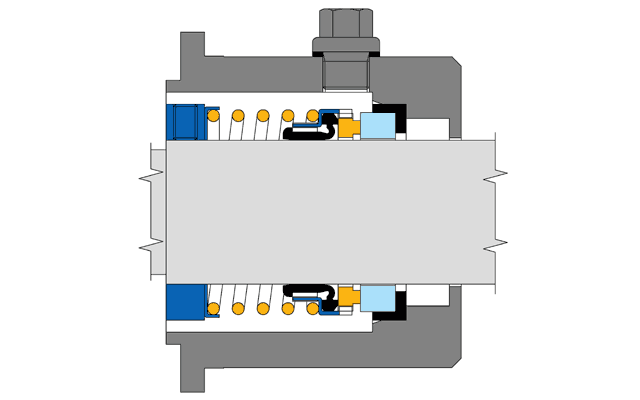

				Mechanical Seal GA

				Conveying Materials \| Low to highly-viscous, containing solids, abrasive

				Pressure Range \| -0.15 to +12 bar

				Zoom

Description

Single-acting mechanical seal
Elastomer bellows
Independent of the direction of rotation
Not pressure-relieved

Note
Municipal and industrial waste-water treatment, food industry

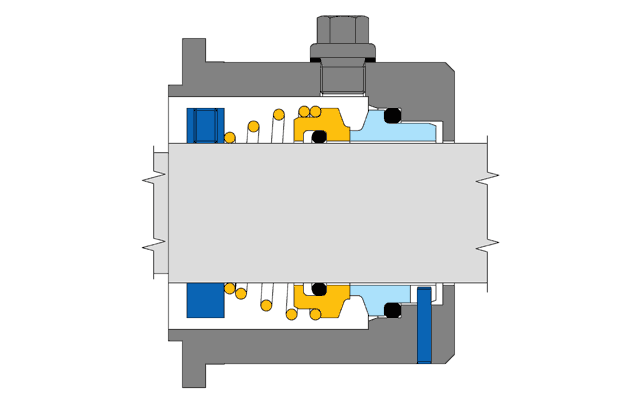

				Mechanical Seal GB

				Conveying Materials \| Low to highly-viscous, free of solids to containing a low degree of solids

				Pressure Range \| -0.15 to 10 bar

				Zoom

Description

Single-acting mechanical seal
Conical spring
Dependent of the direction of rotation
Not pressure-relieved

Note
Cost-efficient standard seal for the food industry

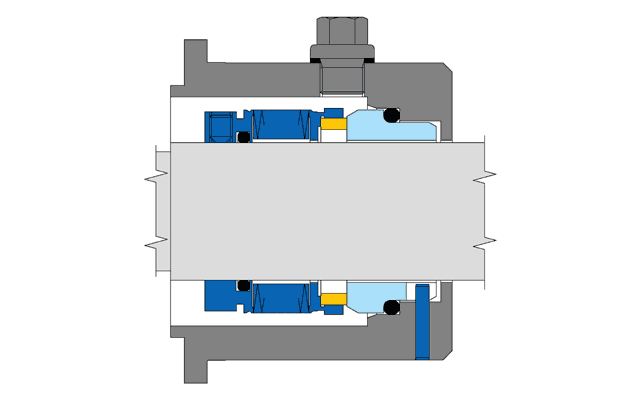

				Mechanical Seal GC

				Conveying Materials \| Low to highly-viscous, containing a high degree of solids, abrasive

				Pressure Range \| -0.15 to +25 bar

				Zoom

Description

Single-acting mechanical seal
Metal bellows
Dependent of the direction of rotation
Not pressure-relieved

Note
Municipal and industrial waste-water treatment, paint and chemical industries



				Mechanical Seal GD

				Conveying Materials \| Low to highly-viscous, free of solids to containing a low degree of solids

				Pressure Range \| -0.15 to +25 bar

				Zoom

Description

Single-acting mechanical seal
Wave spring/multiple spring
Independent of the direction of rotation
Stationary seat stop
Not pressure-relieved

Note
Chemical/pharmaceutical industry

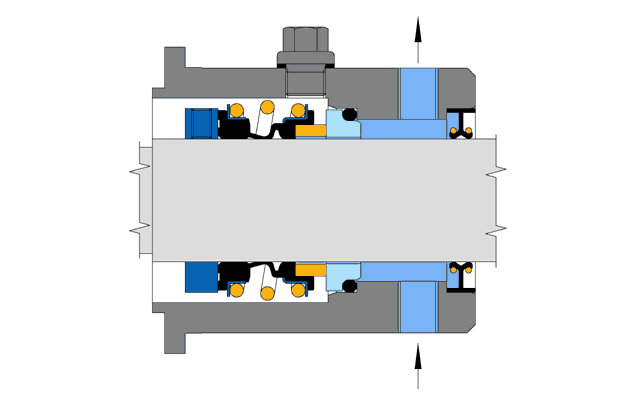

				Option M

				Conveying Materials \| Adhesive, crystallizing

				Pressure Range \| According to the specifications GA-GD. Vacuum up to -0.5 bar

				Zoom

Description

For GA-GD design mechanical seal with Quench

Note
Unpressurized Quench vessel with suitable fluid, lubrication upon vacuum and vertical position

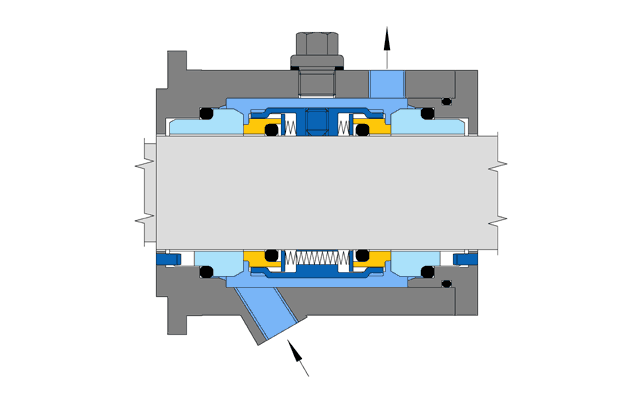

				Mechanical Seal KD

				Conveying Materials \| Low to highly-viscous, free of solids to containing solids, abrasive, adhesive, crystallizing, aggressive, toxic

				Pressure Range \| -1 to +25 bar

				Zoom

Description

Double-acting mechanical seal
Wave spring/multiple spring
Independent of the direction of rotation
Stationary seat stop
Not pressure-relieved

Note
Sealing liquid pressure at least 1.5 bar above the pressure to be sealed. The sealing liquid must be compatible to the conveying medium.

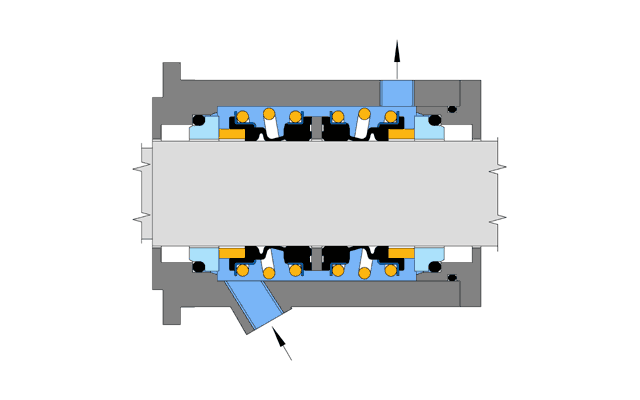

				Mechanical Seal LA

				Conveying Materials \| Low to highly-viscous, free of solids to containing solids, abrasive, adhesive, crystallizing, aggressive, toxic

				Pressure Range \| -1 to +12 bar

				Zoom

Description

Back-to-back mechanical seal
Elastomer bellows
Independent of the direction of rotation
Not pressure-relieved

Note
Sealing liquid pressure at least 1.5 bar above the pressure to be sealed. The sealing liquid must be compatible to the conveying medium.

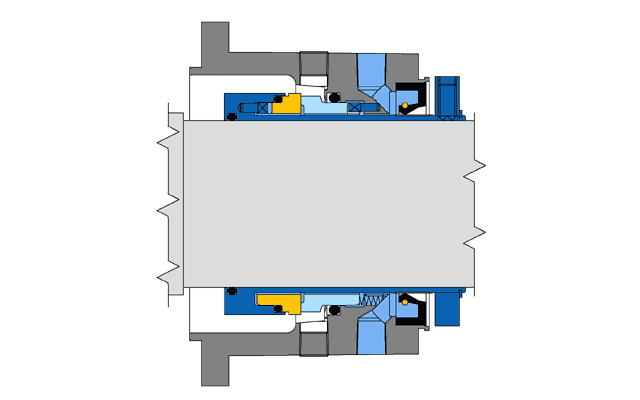

				Mechanical Seal 4E

				Conveying Materials \| Low to highly-viscous, containing solids, abrasive, adhesive, crystallizing

				Pressure Range \| -1 to +12 bar

				Zoom

Description

Mechanical seal in the form of a cartridge unit
Single-acting
With Quench
Independent of the direction of rotation
Double pressure-relieved

Note
Municipal and industrial waste-water treatment, chemical/petrochemical industry

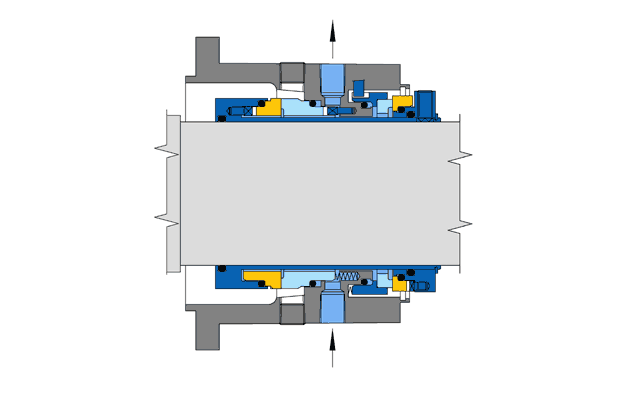

				Mechanical Seal IE

				Conveying Materials \| Low to highly-viscous, free of solids to containing solids, abrasive, adhesive, crystallizing, aggressive, toxic

				Pressure Range \| -1 to +25 bar

				Zoom

Description

Mechanical seal in the form of a cartridge unit
Double-acting
Independent of the direction of rotation
Double pressure-relieved

Note
Municipal and industrial waste-water treatment, chemical/petrochemical industry
